How to build Stabilized Regulated Power Supply Circuit

August 4, 2010 - category: DC power supply

Description

This circuit of power supply, is very simple and easy to built, it can be assembled on a general-purpose PCB, finding its materials is very easy and cost-small. The output voltage is stabilized and is regulated in the region from 0V until + 15V dc, with biggest provided current 1 A. The regulation becomes with the P1. The Q1 is classic power transistor and it needs to be placed on a cool rib (Heatsink), when it works continuously in the region of biggest current it gets hot. The type of transformer is standard in the market.

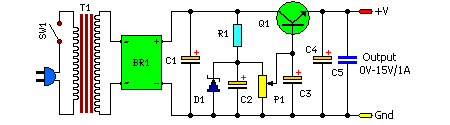

Circuit diagram:

Circuit diagram

Parts:

  • P1 = 330R-Potentiometer
  • R1 = 560R-2W
  • C1 = 2200uF-35V
  • C2 = 100uF-35V
  • C3 = 10uF-25V
  • C4 = 220uF-25V
  • C5 = 100nF-63V
  • D1 = 18V-1.5W Zener
  • Q1 = 2N3055 NPN Transistor
  • T1 = 220VAC – 18V@ 1.5A
  • BR1 = 4x1N4007 Diode Bridge
  • SW1 = Mains On-Off Switch







circuit from http://www.extremecircuits.net/2009/07/stabilized-power-supply-circuit.html
