How to build 220 Volts Flashing Lamps

December 11, 2010 - category: Light flasher

Especially designed for Christmas tree lamps

Replaces old thermally-activated switches

Circuit diagram

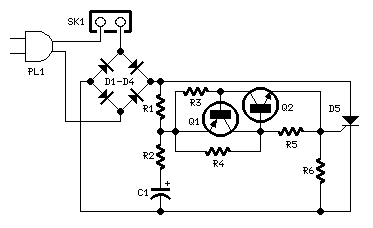

220 Volts Flashing Lamps-Circuit diagram

Parts:

  • R1 100K 1/4W Resistor
  • R2,R5 1K 1/4W Resistors
  • R3,R6 470R 1/4W Resistors
  • R4 12K 1/4W Resistor
  • C1 1000µF 25V Electrolytic Capacitor
  • D1-D4 1N4007 1000V 1A Diodes
  • D5 P0102D 400V 800mA SCR
  • Q1 BC327 45V 800mA PNP Transistor
  • Q2 BC337 45V 800mA NPN Transistor
  • PL1 Male Mains plug
  • SK1 Female Mains socket

Device purpose:

This circuit is intended as a reliable replacement to thermally-activated switches used for Christmas tree lamp-flashing. The device formed by Q1, Q2 and related resistors triggers the SCR. Timing is provided by R1,R2 & C1. To change flashing frequency don't modify R1 and R2 values: set C1 value from 100 to 2200µF instead.

Best performances are obtained with C1=470 or 1000µF and R4=12K or 10K. Due to low consumption of normal 10 or 20 lamp series-loops intended for Christmas trees (60mA @ 220V typical for a 20 lamp series-loop), very small and cheap SCR devices can be used, e.g. C106D1 (400V 3.2A) or TICP106D (400V 2A), this last and the suggested P0102D devices having TO92 case.

Important Note:

For proper operation it's absolutely necessary to employ high Gate-sensitive SCRs. If you are unable to find these devices you can use Triacs instead. In this case the circuit operates also with relatively powerful devices. A recommended Triac type is the ubiquitous TIC206M (600V 4A) but many others can work.Note that in spite of the Triac, diode bridge D1-D4 is in any case necessary.

This circuit was awarded with publication in ELECTRONICS WORLD "Circuit Ideas", June 2000 issue, page 458








author: RED Free Circuit Designs
circuit from http://www.redcircuits.com/
