How to build Battery Powered Night Lamp
September 27, 2010 - category: LED driverDescription
This circuit is usable as a Night Lamp when a wall mains socket is not available to plug-in an ever running small neon lamp device. In order to ensure minimum battery consumption, one 1.5V cell is used and simple voltage doublers drives a pulsating ultra-bright LED: current drawing is less than 500µA. An optional Photo resistor will switch-off the circuit in daylight or when room lamps illuminate, allowing further current economy. This device will run for about 3 months continuously on an ordinary AA sized cell or for around 6 months on an alkaline type cell but, adding the Photo resistor circuitry, running time will be doubled or, very likely, triplicates. IC1 generates a square wave at about 4 Hz frequencies. C2 & D2 form voltage doublers, necessary to raise the battery voltage to a peak value able to drive the LED.

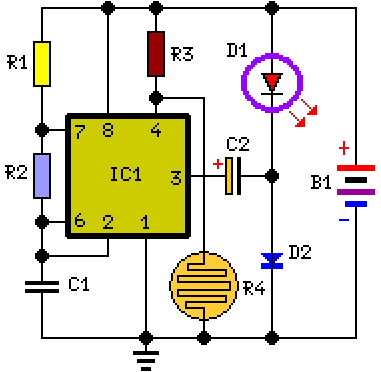

Circuit Diagram:
Parts:
- R1 = 1M
- R2 = 1M
- R3 = 47K
- R4 = LDR
- C1 = 100nF-63V
- C2 = 220uF-25V
- D1 = Ultra Bright 10mm LED
- D2 = 1N5819
- B1 = 1.5V Battery or AA Cell
- IC1 = 7555 CMos Timer IC
Notes:
- IC1 must be a CMos type: only these devices can safely operate at 1.5V supply or less.
- If you do not need Photo resistor operation, omit R3 & R4 and connect pin 4 of IC1 to positive supply.
- Ordinary LEDs can be used, but light intensity will be poor.
- An ordinary 1N4148 type diode can be used instead of the 1N5819 Schottky-barrier type diode, but LED intensity will be reduced due to the higher voltage drop.
- Any Schottky-barrier type diode can be used in place of the 1N5819, e.g. the BAT46, rated @ 100V 150mA.
