How to build Voltage follower with 1G ohm input resistance

October 5, 2010 - category: General electronics

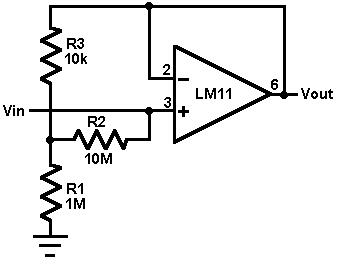

Circuit diagram

Voltage follower with 1G ohm input resistance - cir12

This circuit uses an LM11 to form a voltage follower with 1G ohm input resistance built using standard resistor values. With the input disconnected, the input offset voltage is multiplied by the same factor as R2; but the added error is small because the offset voltage of the LM11 is so low. When the input is connected to a source less than 1G ohm, this error is reduced. For an ac-coupled input a second 10M resistor could be connected in series with the inverting input to virtually eliminate bias current error; bypassing it would give minimal noise.








author: National Semiconductor
circuit from http://www.electronics-lab.com/
